Brand Name : Defuli
Model Number : magnetic tensioner
Certification : ISO, SGS, ROHS
Place of Origin : China
MOQ : 1pcs
Price : negotiation
Payment Terms : T/T, Paypal, Western Union, MoneyGram
Supply Ability : 1000pcs per month
Delivery Time : 3-7 working days
Packaging Details : carton with foam
sample lead time : 7 days
payment : T/T or Paypal
using : coil winding machine
material : stainless steel
packaging : carton with foam
application : winding machine
Coil Winding Magnet Tensioner , Wire Tensioner , Magnetic Tensioner

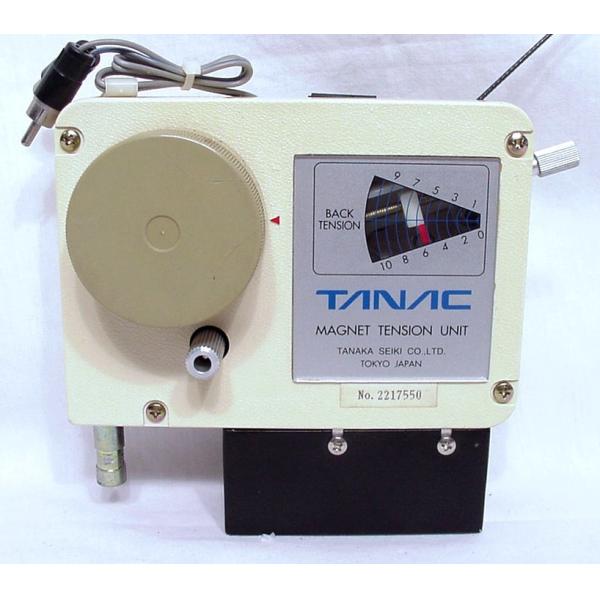

About the tensioner
Magnetic damping tensioner is a magnetic field of media tension constant torque transfer
device, the damping plate doesn’t touch with magnet and without sliding friction, long use life
time. The tension control is extreme stable. It is simple and easy to fix on machinery, easy to
adjust the output torque too, compact design, small size, always keep stable when it is
running in a variety of locations.
MTC Magnetic Tensioner Specifications
Model | Applied wire diameter(mm) | Tension scope(g) |
MTCSS | φ0.03-φ0.07 | 4.0g-40g |
MTCS | φ0.04-φ0.14 | 10g-120g |
MTCM | φ0.08-φ0.25 | 50g-400g |
MTCL | φ0.12-φ0.35 | 80g-600g |
MTCLL | φ0.14-φ0.40 | 100g-800g |
Our Features:
1. Excellence for both high and normal speed winding.
2. Consistence and precision tension to the wire
3. Simple & Easy Adjustment
4. Non wire breakage
5. longer service life
![]() |
